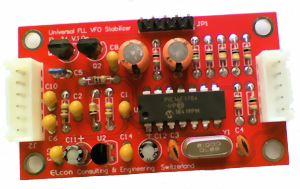

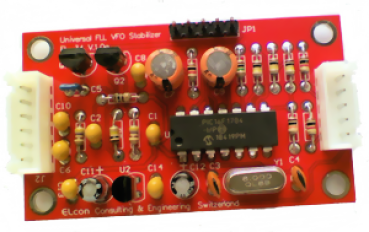

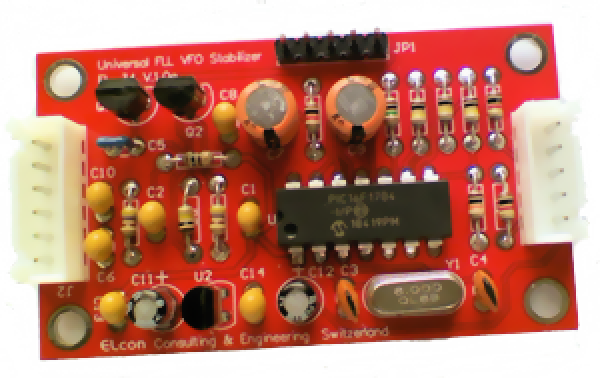

Universal FLL-VFO Stabilizer EL-34 (kit or assembled)
The EL-34 module has been developed for all radios with a free-running VFO,
and fits most radios such as Heathkit SB-104A, HW-101 or YAESU FT-101 etc.
With this additional circuit, the frequency stability of the VFO can be made crystal stable.
The kit is easy to assemble as it does not require SMD components.
Good soldering skills are required to assemble the circuit board and install it in the transceiver.
Technical specifications:
- Frequency: 2 – 20MHz Input level: >100mV
- Power supply: 7 bis 20V / 30mA
- Dimensions: 60L) × 35(B) × 15(H) mm
Bau- und Bedienungs- und Funktionsbeschreibung (ge)
Construction, operational and functional description (en)
EL-34 installation instructions and tips from our customers
Although we review all instructions before publication, we assume no liability for resulting loss or injury.
|
Manufacturer |
Modell |
Author |
|---|---|---|
|
|
SB-104A |
Randy Best, W7CPA |
|
|
FT-101EE |
Dave Bohlen, N0EDS |
|
|
EICO-753 |
John Polonchak, W3AYS
|
|
|
DRAKE TR-4 |
John Polonchak, W3AYS
Marinos Markomanolakis SV9DRU / KI4GIN |
|
|
Corsair II |
Marinos Markomanolakis |
